Climate change is projected to impact sea-level rise, wave direction and swell energy, and storm tide events (Figure 1). This affects coastal erosion, sediment supply and inundation.

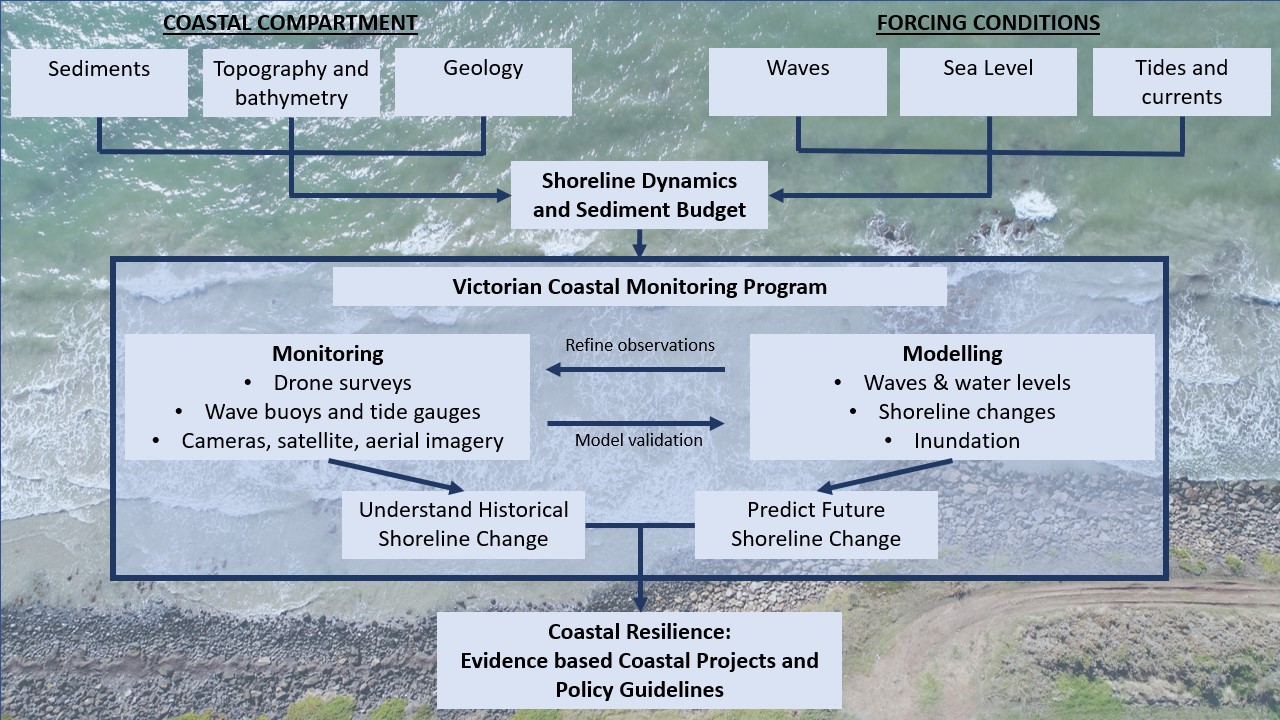

Flow chart coastal hazards Figure 1: Summary of the causes and drivers of coastal hazards

We’re working to educate communities on changing coastal hazards and expected longer-term impacts.  From 2017, we’ve committed $4.9 million from the Victorian Sustainability Fund to support the Victorian Coastal Monitoring Program (VCMP).

We’ve partnered with community groups, local governments and institutions to co-invest in coastal monitoring projects regionally and locally. Co-funding partnerships with Deakin University, University of Melbourne, Monash University, University of Wollongong and Macquarie University amount to over $9 million total. This includes:

  • Monitoring at over 30 priority locations across Victoria, including the southwest, the Great Ocean Road, Port Phillip Bay, Western Port and Gippsland
  • Monitoring of coastal waves and water temperatures with a network of buoys spanning the open coast and key locations across Port Phillip Bay

There are many complementary projects involved in the VCMP. View a Story Map here.

What is being monitored?

The VCMP monitors wave climate, sediment movement and sediment budgets in priority coastal areas of Victoria’s open coastline, Western Port Bay and Port Phillip Bay.

Knowledge of sediment budgets help us to identify which areas of Victoria are likely to lose or gain sediment. This assessment helps us undertake coastal adaptation planning and investment.

Play the short video below to see how the volume and extent of beach sediments changed on Warrnambool’s shoreline after a storm surge event in 2014.

Improving coastal erosion assessments on open coast shores

Deakin University (marinemapping.org) and Melbourne University (The Coastal Lab Victorian Coastal Monitoring Program) are monitoring wave dominated shorelines. They are collecting data on the:

  • Change in height, extent amd volume of sediment on beaches and shorelines
  • The sediment dynamics in the adjoining sub-tidal waters

Need

Gaps to be filled

Benefits

Example Projects

Theme 1: Shoreline sediment dynamics

  • Beaches are dynamic, yet whether they are prograding or receding is mostly unknown. The impact of storms, specifically how much sediment movement is natural is unknown.
  • As a result, human infrastructure is often placed in the current hazard zone and we are unable to differentiate between the impact of ‘normal’ storm events and shifts associated with climate change.
  • The interconnected nature of beach systems is recognised in the ‘coastal compartments’ mapping of NCCARF; however, the degree of sediment movement between compartments is unknown.
  • Long term rates of coastal change and vulnerability to erosion of individual compartments.
  • Size of ‘storm bite’
  • Degree of connection between compartments.
  • Clarification of boundaries between coastal compartments integrating seabed mapping knowledge.
  • Establishment of benchmark information for relevant stakeholders.
  • Ability to quantify both short- and long-term rates of coastal change.
  • Identification of key timescales of vulnerability of Victorian beaches for development of hazard assessments

UAV Contribution to Coastal Compartments (Pucino et al. 2019) (PDF, 4.1 MB)

Hyperspectral Remote Sensing of Coastal Morphodynamics (Pucino et al. 2019) (PDF, 3.5 MB)

Shoreline fluxes in Lady Bay, Warrnambool (Bhatt 2019) (PDF, 637.1 KB)

Volumetric calculations using historical aerial photographic archive: moving beyong shoreline extraction in coastal Victoria (Carvalho et al. 2019) (PDF, 4.6 MB)

Mobility of active coastal dune system in Victoria, Australia: An example from Cape Woolamai (Gao et al. 2019) (PDF, 1.9 MB)

Coastal barrier evolution in Gippsland region over the Last Interglacial and Holocene (Kennedy et al. 2019) (PDF, 2.2 MB)

Quantifying historic erosion rates along Victoria's Coastline (Konlechner et al. 2019)  (PDF, 2.9 MB)

Modern Dune Dynamics on the Inverloch Spit (McGuirk et al. 2019) (PDF, 3.1 MB)

Theme 2: Marine (subtidal) sediment dynamics

  • Beaches respond to storms through transferring sand from their upper (subaerial) to lower (marine) components.
  • The beaches above normal waves are therefore a small component of the entire profile. The subtidal component is therefore more critical to the long-term stability of sandy shores.
  • At present we only have a single snapshot of part of the marine component of beaches, collected 10 years ago.
  • No information is currently available on sediment thickness – and therefore the actual volume of sediment on the coast.
  • The offshore extent of beaches.
  • Volume of sand present on the coast.
  • Decadal scale stability of the marine component of the coast.
  • Quantification of the degree of connection between coastal compartments.
  • Sediment composition of the coast and link to the terrestrial component
  • Quantification of the degree of geological constraint of Victorian beaches. This will allow the veracity of applications of commonly applied engineering models of shoreline retreat which assume an entirely sandy profile to wave base.
  • Establishment of benchmark data on the volume of sandy present on the coast and therefore the capacity of beaches to adjust to future environmental variations.
  • Validation of compartment boundaries that form the basis of NCCARF coastal modelling through integration of seabed mapping data initiatives.

Deakin Marine Mapping is a group of researchers from Deakin University led by Daniel Ierodiaconou focusing on mapping the seafloor and coastlines of Victoria and beyond, see their website here.

Theme 3: Coastal compartment modelling and visualisation

  • Standard coastal analysis generally models systems based solely on their subaerial or marine components.

  • A detailed analysis that includes the extraction of short term and long-term shoreline position, computation of new shoreline rates of change, correlation of shoreline types and setting.
  • A pilot demonstration on how high-quality physical data can be incorporated into comprehensive numerical modelling systems that integrate multi-dimensional onshore/offshore and longshore fluxes of sediment.
  • Agent Based Modelling performed as a demonstration on a select key area within priority compartments and as an exemplar approach for risk modelling and assessment for integrating spatially explicit data in a dynamic framework.
  • Appling the latest numerical modelling techniques to the Victorian coast.
  • Integration of wave and tidal data with shoreline and compartment morphological results.
  • Applying historical changes in shoreline positions to project future positions along shore. (This includes using the rate of change of natural, unarmoured shorelines to correlate the type of shoreline hydrodynamics and wave climate which will provide insight into the process of shoreline change and will identify those shoreline types and areas at risk of severe erosion).

Predicting future geomorphological change along Victoria's Coastline using numerical modelling techniques (Morris et al. 2019) (PDF, 3.1 MB)

Coastal Compartment Modelling and Visualisation (Morris 2019) (PDF, 2.2 MB)

Theme 4: Coastal monitoring using unmanned aerial vehicles (UAVs) & citizen science

  • Engage the community in coastal management and research.
  • Develop a citizen-science based program of excellence.
  • The development and implementation of an UAV citizen science training program.
  • The development of a UAV web data portal for cloud processing and data access.
  • Development of methodologies for automated extraction of biotic from abiotic factors in remotely sensed UAV & multibeam SONAR data.
  • Development of a methodology for analysis of UAV data that is accessible to the general public and scientifically robust.
    - Understanding the role of abiotic and biotic factors in stabilising sediment supply and production.
  • Development of a sustainable long-term mechanism for citizen science and engagement.

Victorian Coastal Monitoring Program (Allan 2019) (PDF, 3.7 MB)

Citizen Science UAVs for Monitoring Shoreline Change (Allan et al. 2019)
(PDF, 1.3 MB)

Citizen Science and UAVs: How to monitor the Victorian coast (Pucino et al. 2019) (PDF, 3.6 MB)

Deakin Marine Mapping is a group of researchers from Deakin University led by Daniel Ierodiaconou focusing on mapping the seafloor and coastlines of Victoria and beyond, see their website here.

To understand more about coastal erosion:

Improving coastal erosion assessments of Western Port Bay and Corner Inlet

Monash University, along with delivery partners Macquarie University, University of Wollongong and University of Melbourne, are monitoring sheltered mud flats, mangroves and salt-marsh.

Read the program overview (PDF, 1.1 MB).

Improving coastal erosion assessments of large embayments

A number of projects have been implemented across four themes which will inform a framework for coastal erosion hazard in Victoria’s large sheltered embayments (Figure 2).

Take a look at the research project summaries (PDF, 181.6 KB).

These investigations will be complemented by a citizen science monitoring program .

Figure 3: Project themes for the Western Port embayment

Figure 2: Project themes for the Western Port embayment

This project will focus on Western Port Bay. This is a tidal bay with wetlands, mangroves and mudflats. Four sites will be studied:

  • Lang Lang
  • Tooradin
  • Rhyll Island
  • French Island

Corner Inlet will be used as a comparison site. Corner Inlet is a Ramsar wetland with internationally significant species.

Read more about the Western Port embayment project (PDF, 1.6 MB).

We are combining monitoring and investigations of sediment movement in the bay. This helps us understand these types of shorelines.

Need

Gaps to be filled

Benefits

Example project

Theme 1: Geomorphic Setting

  • Shoreline and landform characteristics influence vegetation communities, erosion and accretion rates
  • Appropriate grouping of similar geomorphic units in Western Port Bay
  • Consideration of geomorphic setting in the smartline dataset
  • Identification of vegetation types and physical attributes in the smartline dataset
  • Incorporation of geomorphic information into the smartline data will allow for consistent inputs into modelling and predictions of shoreline changes in the future
  • Identification of geomorphic units will allow for forward projections of sediment movement
  • Model morphological changes in the nearshore area using parameters established for each geomorphic unit using open source software (XBeach model)

Westernport Bay Coastal wetland geomorphology (Rogers and Saintilan 2019) (PDF, 6.1 MB)

Theme 2: Hydrodynamic drivers

  • Role of waves is critical in erosion processes
  • Effects of waves varies with shoreline characteristics
  • Data for drivers for wave formation such as wind direction and wind speed
  • Data for surface roughness
  • Understanding of the interaction between waves, inundation, marsh platform
  • Improved parameterization of inputs for coastal chance models to predict future impacts
  • Improved ability to model nearshore environments using open source software (Delft 3D Wave model)

Wave s+ Hydro-Sed (Reef 2019) (PDF, 3.8 MB)

Theme 3: Sediment Supply

  • Transport of sediment is critical to eroding or accreting shorelines
  • Understanding how the elevation and morphology of the shoreline changes over a range of timescales is important in how sediment is transported
  • Determining the available accommodation space in an embayment, which is constrained by the catchment and tidal regime, is important affects the area available for wetland migration
  • Identification of sources and sinks of sediment
  • Quantification of erosion and accretion rates over different timescales, from seasonal and annual variation so to longer term trends
  • Understanding how sediment supply influences coastal acid sulphate soil formation
  • Quantification of surface elevation changes due to limited number of SET sites established in Western Port Bay
  • Identification of the role of autochthonous sediment contribution to surface elevation changes
  • Correlation between suspended sediment concentrations determined from remotely-sensed data and nearshore sediment availability and characteristics
  • Variation and magnitude of changes in the shoreline over the time period when aerial photography has been available
  • Development of a technique to monitor long term suspended sediment concentration variations using remotely-sensed data
  • Establishment of additional long-term monitoring sites for surface elevation changes in representative geomorphic units; sediment exchange between the nearshore and intertidal zone monitored under current conditions can be used to determined variations over shorter (seasonal) time frames
  • Parameterisation of accretion and erosion processes based on geomorphic units for improved accuracy in modelling and scaling

Wave s+ Hydro-Sed (Reef 2019) (PDF, 3.8 MB)

Coastal Acid Sulfate Soils (Wong 2019) (PDF, 3.3 MB)

Theme 4: Citizen Science Monitoring

  • Engage the community in management, monitoring and research in the coastal zone
  • Provide additional observation points for change detection in the coastal zone
  • Event-based data on the shoreline, such as following storm-surge or coastal flooding, is patchy and inconsistent
  • Variations in the high tide mark in high temporal and spatial resolution is limited
  • Improved understanding of the height and variability of high tide and proximity to important infrastructure
  • Improved understanding of variability in tidal cycles vs storm surge events
  • Establishment of long-term monitoring sites for shoreline profile changes

MangroveWatch is a not-for-profit organisation that focuses on the research, education and conservation of mangrove and tidal wetland environments globally. Much of our work is channeled through our flagship program that is built on partnerships between scientists, community volunteers and traditional owners, see MangroveWatchers!

More information

Please email vcmp@delwp.vic.gov.au.

For information on climate change and coastal environments, visit the National Climate Change Adaption Research Facility website or CoastAdapt.
